Produktdetails
Crimp -Reichweite 14 - 45mm Schlauchgröße 1/4 - 1inch
Die Sets 7 Farbe Blau
Max. Öffnung 20mm Kriminkraft 150T
Systemdruck 31,5mpa Leistung Handpumpe
Größe 400*320*300mm Gewicht 32 kg
Produktname Bördelmaschine des Schlauch-P16
Hervorheben

Manual Hydraulic Hose Crimping Machine

,

150T Hose Crimper

,

Portable P16 Hose Crimper
Hinterlass eine Nachricht
Produkt-Beschreibung

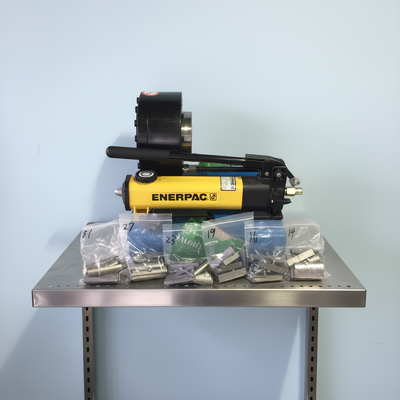

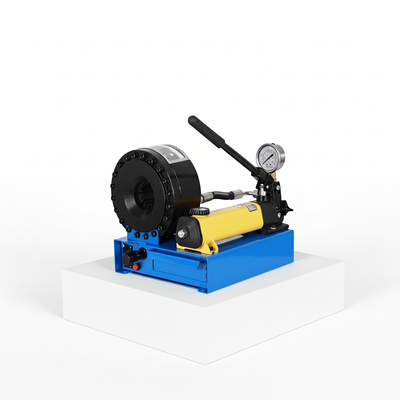

P16HP Manual Hydraulic Hose Crimping Machine
MS-P16 is a manually operated hose crimping machine designed for portability and reliability. With its lightweight construction, it can be easily transported to any location requiring hose assembly crimping, making it the ideal solution for job sites without electricity supply.
Key Advantages
  • Famous "ENERPAC" hydraulic valve for high stability and reliability
  • Simple design that's easy for novice operators
  • Substantial crimping force capable of handling up to 4 steel wire hoses
  • High productivity with efficient operation
  • Low maintenance cost for long-term value
Technical Specifications
Model P16 Hose Crimper Machine
Crimping Range 14 - 47 mm
Crimping Force 150 Tons
Hose Size 1/4 - 1 inch
Maximum Opening 20 mm
Die Sets 7
Die Set Type P16
System Pressure 31.5 MPa
Accuracy 0.01 mm
Length 400 mm
Width 320 mm
Height 300 mm
Weight 32 kg
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 0
P16 Crimper Die Sets
Die Number Crimping Range Length
6* 6 ... 8 mm 55
8* 8 ... 10 mm 55
10* 10 ... 12 mm 55
12* 12 ... 14 mm 55
14 14 ... 16 mm 55
16 16 ... 19 mm 55
19 19 ... 23 mm 55
23 23 ... 27 mm 55
27 27 ... 31 mm 55
31 31 ... 35 mm 65
35 35 ... 41 mm 65
Important Notes
  • "*" indicates non-standard die sets
  • Customized die sets are available upon request
  • Maximum opening refers to the stroke between fully closed and fully opened die sets
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control System
  • Electric Crimper Conversion
Product Features
Famous "ENERPAC" hydraulic oil pump for reliable performance
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 1
Precision die sets for hydraulic hose assembly pressing
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 2
Secure packaging with plywood case, fumigation-free
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 3
Crimping Samples
Germany High CE Quality P16 Hydraulic Hose Crimping Machine 1 Inch 25mm Portable Hose Crimping Machine Manual Hydraulic Hose Crimping Machine 4
